Prusa Spring Steel Print Sheets (Local Shipping in Canada)

Toronto's local Prusa distributor.

There are different material print sheet options, each described below:
1. Double-sided Textured PEI Powder-coated Spring Steel Sheet
2. Double-sided Satin Powder-coated PEI Spring Steel Sheet
3. Double-sided Smooth PEI Spring Steel Sheet
4. Double-sided Powder-coated PA Nylon Spring Steel Sheet
5. Double-sided Powder-coated PP Spring Steel Sheet

Select your printer model from the dropdown menu for compatibility with:
Core One; or
MK4/S, MK3.9/S, MK3/S/+, MK2.5/S; or
MINI/+; or
XL; or
HT90.

All the heatbeds have embedded high Curie temperature magnets. These magnets are able to firmly hold removable spring steel sheets.

Double-sided Textured PEI Powder-coated Spring Steel Sheet

Overview: Powder coating directly on metal makes it very hard to damage this build plate. If a heated nozzle crashed into it, the metal can dissipate the heat. Powder coating also gives the surface a distinct textured look that will be visible on your prints. The textured surface hides most of the mechanical damage caused by tools. Only the top of the small bumps can be scratched, which will not imprint on the bottom of the model. This surface is used on our print farm, look at the printed parts you have on your printer for reference.

Warning: Never clean the Textured PEI Powder-coated spring steel sheet with acetone! Doing so will create microfractures in the PEI texture, which will make the surface deteriorate over time.

Attributes:

  • Scratchproof, hard to damage
  • Transfers texture to prints
  • More forgiving Live Adjust Z setting
  • No need for Windex with PETG
  • No need for glue stick with FLEX
  • Prints automatically detach after sheet cools down
  • First layer can be more squished compared to smooth sheets
  • PLA prints with a small contact area may need a brim
  • PLA prints with a huge footprint may warp
  • Need to change Live Adjust Z if you also own Smooth PEI sheet
  • Never clean with acetone



Double-sided Satin Powder-coated PEI Spring Steel Sheet

Overview: The Satin sheet further expands our line-up of print sheets. In terms of printing properties, the Satin sheet sits between the smooth and textured variants. Its powder-coated surface with lightly textured matte finish offers an optimal level of adhesion, especially when printing PLA and PETG materials. It is fully compatible with a wide range of common and less-common filaments, such as ABS, ASA, FlexFill 98A, Polycarbonate and more. A vast majority of materials can be printed without a separation layer (e.g. glue).

Polycarbonate - prints better on satin (compared to smooth and textured sheets) - when printing with PC often, glue stick layer is recommended to prevent possible damage to the sheet.

Warning: Never clean the Satin powder-coated spring steel sheet with acetone! Doing so will create microfractures in the texture, which will make the surface deteriorate over time.

Attributes:

  • Suitable for both PLA and PETG
  • Lightly textured surface finish
  • No need for Windex for PETG
  • No need for glue stick with FlexFill 98A
  • Wide range of supported filaments, including advanced materials, for instance PC Blend
  • Easy maintenance and good adhesion qualities
  • Acetone causes the surface to quickly deteriorate
  • Prints from ASA, PC Blend require a brim / skirt / shield around the print
  • Live Z value needs to be readjusted if you switch sheets
  • Do not use sharp metal objects (e.g. a spatula) to remove the print!



Double-sided Smooth PEI Spring Steel Sheet

Overview: The Spring Steel Sheet with Smooth Double-sided PEI uses the same PEI sheets as on the MK2/S. It is the best solution for printing PLA and it has great adhesion with almost all materials. The bottom of your prints will be smooth.

You can leave small marks on the print surface with your nozzle or tools, they will typically be shinier than the rest. It does not affect functionality or adhesion. However, if you want to have the same surface look on the whole printbed you can resurface it. The easiest way is to take the hard side of a dry kitchen sponge and wipe the affected area with a circular motion gently a few times.

Attributes:

  • Perfect for PLA
  • Great adhesion with almost all materials
  • Smooth bottom of prints
  • Tiny details will stick great
  • Do not clean with IPA before PETG
  • Release agent might be necessary
  • You must apply glue stick when printing Flex

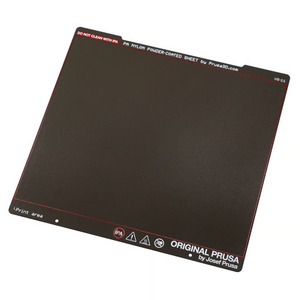

Double-sided Powder-coated PA Nylon Spring Steel Sheet

Overview: This print sheet is specially designed to print polyamide-based filaments, especially the Prusament PA11 Carbon Fiber Black. The PA11-type materials have generally a lower adhesion on textured or satin print sheets. This sheet has a special surface finish that increases the adhesion and is perfect for Prusament PA11.
You can learn more about the Double-sided Powder-coated PA Nylon Spring Steel Sheet in our knowledgebase.

IMPORTANT! The surface of this sheet should be cleaned only with pure water. Using common agents such as IPA or Acetone will lead to a quick deterioration of the surface. Using a glue stick is no longer required and recommended. To clean grease-coated areas, use clean water with a drop of dishwashing detergent.

Attributes:

  • Great for polyamide-based materials
  • No need for a glue stick
  • Can be cleaned just with water
  • Suitable only for polyamide-based materials and PETG. Other materials tend to detach mid-print
  • Can be damaged with IPA and acetone

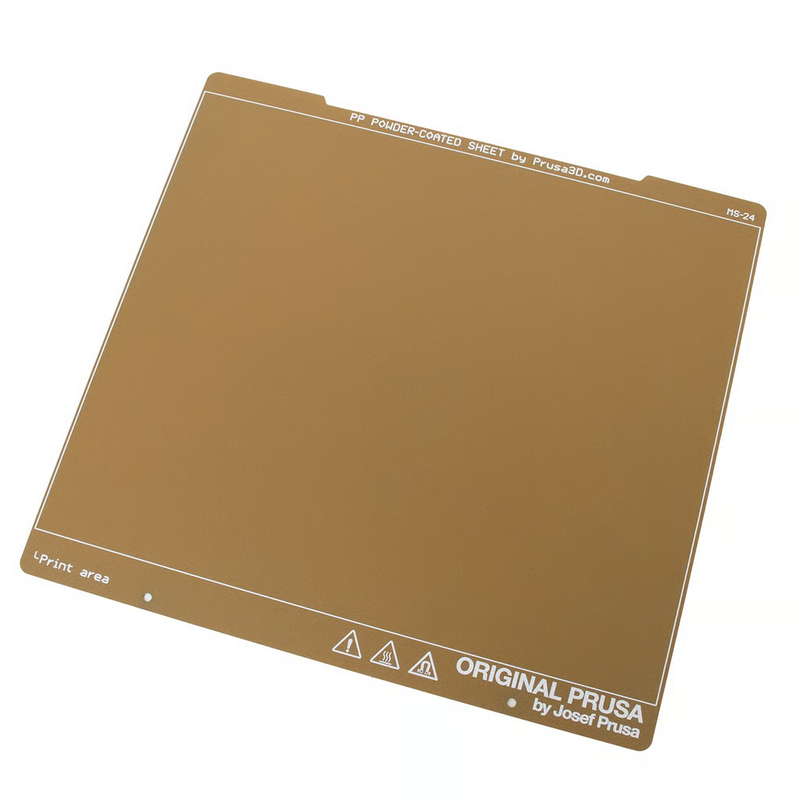

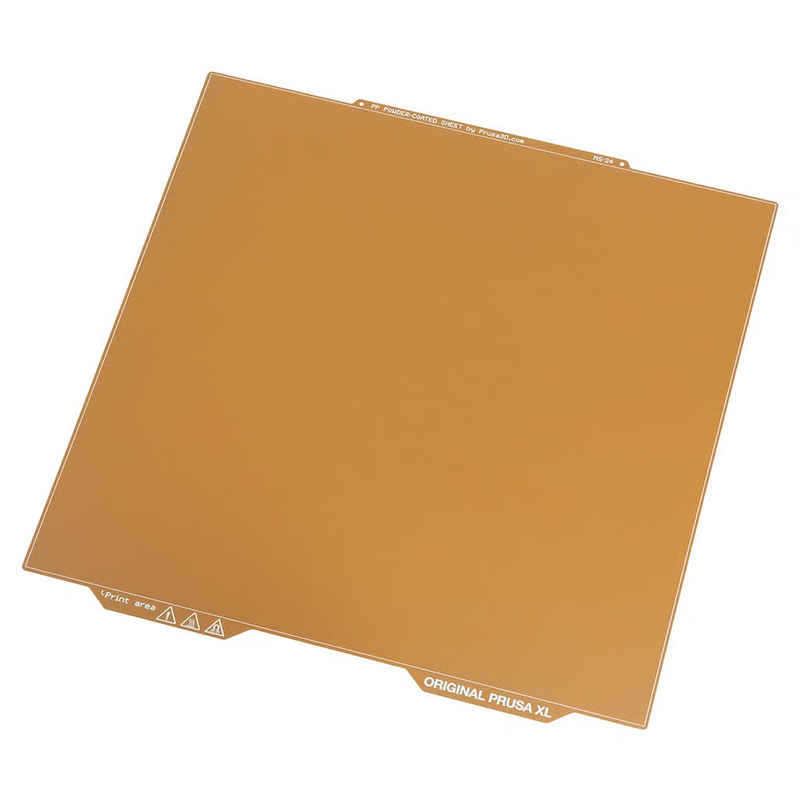

Double-sided Powder-coated PP Spring Steel Sheet

Overview: This print sheet is specially designed to print polypropylene-based filaments, especially the Prusament PP Carbon Fiber Black. The PP-type materials have generally a lower adhesion on textured or satin print sheets. This sheet has a special surface finish that increases the adhesion and is perfect for Prusament PP.

The PP sheet has a lightly textured surface finish similar to the Satin Powder-coated Steel Sheet. You can learn more about the PP sheet in our online help article.

IMPORTANT! Never clean the PP sheet with acetone! Acetone partially dissolves the sheet‘s surface, leaving stains. It may also negatively affect both adhesion properties and the sheet’s lifespan. Learn more about printing on the PP sheet in our online help article.

Attributes:

  • Perfect for most PP materials
  • No need for any separation layer
  • Can be cleaned with IPA
  • Supports printing large PP parts
  • Suitable only for PP-based materials, PLA, PETG, and TPU. Other materials tend to detach mid-print
  • Can be damaged with acetone
